Большая ограничиваемая интернациональная система
|
Подробная информация о продукте:
Оплата и доставка Условия:
|
| Изготовление: | МТЛ | materialEstimated время выполнения: | Обычно корабли в 1-10 рабочих днях. |
|---|---|---|---|
| Продукт нет.: | MTL5544 | Тип продукта: | Электропитание репитера |
| Количество каналов: | 2 | Пульсация цепи безопасного района: | < 50=""> |
| Точность передачи на 20°C: | Лучший чем 15µA | Смещение температуры: | < 0=""> |
Estimated Lead Time : Usually ships in 1-10 working days.
Manufacturer : MTL Instruments

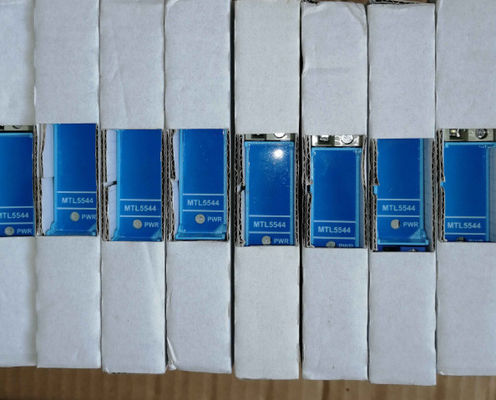

Product No. : MTL5544
Product type : Repeater Power Supply
2-channel, 4/20mA, HART®, 2- or 3- wire transmitters
The MTLx544 provides fully-floating dc supplies for energising two conventional 2-wire or 3-wire 4/20mA or HART transmitters located in a hazardous area, and repeats the current in other circuits to drive two safe-area loads.
For smart transmitters, the unit allows bi-directional transmission of digital communication signals superimposed on the 4/20mA loop current.
Alternatively, the MTLx544S acts as a current sink for a safe-area connection rather than driving a current into the load.
Separately powered current sources, such as 4-wire transmitters,
can be connected but will not support HART communication.
Shipping weight: 1 Kg
The MTLx544 provides fully-floating dc supplies for energising two
conventional 2-wire or 3-wire 4/20mA or HART transmitters located in
a hazardous area, and repeats the current in other circuits to drive two
safe-area loads. For smart transmitters, the unit allows bi-directional
transmission of digital communication signals superimposed on the
4/20mA loop current. Alternatively, the MTLx544S acts as a current
sink for a safe-area connection rather than driving a current into the
load. Separately powered current sources, such as 4-wire transmitters,
can be connected but will not support HART communication
