Подробная информация о продукте:
Оплата и доставка Условия:
|
| Размеры блока: | (W x l x h): 40*35*30cm | Время на ответ: | 90ms |
|---|---|---|---|
| изготовитель: | ИОКОГАВА | Модель: | EJA430E-FHS4G-919DD/KS26/D3/X2/M11/T11 |
| СТАБИЛЬНОСТЬ: | ±0.1% из URL в 7 лет | Точность: | ±0.055% из пяди |
| Начало: | Япония | Гарантия: | 12 месяца |
| Имя продуктов: | Передатчик давления по манометру EJA430E |

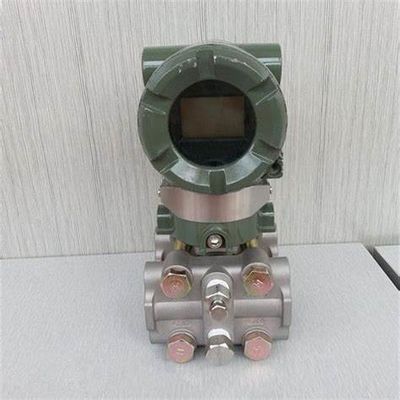

EJA430E-FHS4G-919DD Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto
Description:
Manufacturer : Yokogawa
Product No. : EJA430E-FHS4G-919DD/KS26/D3/X2/M11/T11
Product Type : Differential Pressure Transmitter
Measurement span(capsule) : M = 1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar}
Wetted parts material : S
Body : SCS14A
Capsule : SUS316L
Vent plug : SUS316
Process connections : 4 = with 1/2 NPT female process connector
Bolts and nuts materiaL : B = SUS630, Maximum working pressure : 16 MPa {160 kgf/cm2}*9
Installation : 3 = Vertical impulse piping type, right side high pressure, process connector downside
Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plug
Integral indicator : D = Digital indicator
Mounting bracket : C = SECC Carbon steel 2-inch pipe mounting (L type)
Factory Mutual (FM) : FF1 =
FM Explosionproof Approval *1 *3 *4
Applicable standard: FM3600, FM3615, FM3810, ANSI/NEMA250
Explosionproof for Class I, Division 1, Groups B, C and D
Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G
Hazardous (classified) locations, indoors and outdoors (NEMA 4X)
Temperature class: T6
Amb. Temp.: –40 to 60C (–40 to 140F)
Painting Coating change : X1 = Epoxy resin-baked coating
Calibration units : D3 = bar calibration (bar unit)
Shipping Weight : 8 Kg
The EJA430E is a traditional-mount gauge pressure transmitter in the series.
EJA430E features include:
0.055% Accuracy (0.04% Accuracy optional)
0.1% Stability per 10 years
90 ms Response Time
Exida and TUV SIL 2/3 Certified
Local Parameter Setting (LPS)
| Hot sale Original Japanese Yokogawa 4-20ma Pressure Transducer EJA110E | |||||
| L Capsule | M Capsule | H Capsule | V Capsule | ||
| Range | -10 to 10 kPa | -100 to 100 kPa | -500 to 500 kPa | -0.5 to 14 MPa | |
| (-40 to 40 inH2O) | (-400 to 400 inH2O) | (-2000 to 2000 inH2O) | (-70 to 2000 psi) | ||
| Span | 0.5 to 10 kPa | 1 to 100 kPa | 5 to 500 kPa | 0.14 to 14 MPa | |
| (2 to 40 inH2O) | (4 to 400 inH2O) | (20 to 2000 inH2O) | (20 to 2000 psi) | ||
| Accuracy | ±0.075% | ±0.065% | ± 0.065% | ±0.065% | |
| Degrees of Protection | IP67, NEMA 4X, and JIS C0920 immersion proof | ||||
| Certificates | FM, CENELEC ATEX, CSA, IECEx | ||||
| Output | 4 to 20 mA DC, FOUNDATIONTM fieldbus or PROFIBUS PA 2-wire system with digital communication | ||||
| Supply Voltage | BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) | ||||
| Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) | |||||
| Ambient temperature | -40 to 85 deg C (-40 to 185 deg F) (general use type) | ||||
| -30 to 80 deg C (-22 to 176 deg F) (with integral indicator) | |||||
| Process Temperature | -40 to 120 deg C (-40 to 248 deg F) (general use type) | ||||
| Maximum Working Pressure | 16MPa(2300psi) | ||||
| 3.5MPa(500psi) for L capsule with special materials | |||||
| Mounting | 2-inch pipe mounting | ||||
| Wetted parts material | Capsule | SUS316L(Diaphragm material is Hastelloy C-276), | |||
| Hastelloy C-276, Tantalum, Monel | |||||
| Cover flange | SUS316, Hastelloy C-276, Monel | ||||
| Housing | Cast aluminum alloy or SUS316 equivalent stainless steel (optional) | ||||
Important Terms:
1. Quote Validity 30 days
2. Offered product genuine and brand new.
3. Manufacturer name & country of origin: Yokogawa & Japan
4. Delivery lead time: 8-10 weeks
5. Shipping cost to us: We quote when goods ready for shipment
6. Shipping mode (Air/Sea): Air
